1000PCS Deutsch DT Connector Plug Kit With Genuine Deutsch Crimp Tool Auto Marine

Description:

Do you still worry about your wiring connector issues ? Please do not worry about it anymore now, as our DT2-12 PIN connector plug kit can give you a professional look to wiring circuits.There are cheaper connectors on the market but do they last as long as you want them to ? Probably not.Once they are exposed to a bit of heat, vibration or liquid they generally fall apart in a short period of time.

But our connectors plug kits will never appear this kind problem, they are able to cope easily in high vibration applications.No unlocking or physical damage after sinusoidal vibration levels of 20 Gs at 10 to 2000Hz, this is why so many professionals electrical companies have been using our these connectors for years.

Features:

Product Quality: All the connector plugs are made of high quality environmental-friendly nylon materials, corrosion-resistant and wear-resistant, durable enough for your long time use.

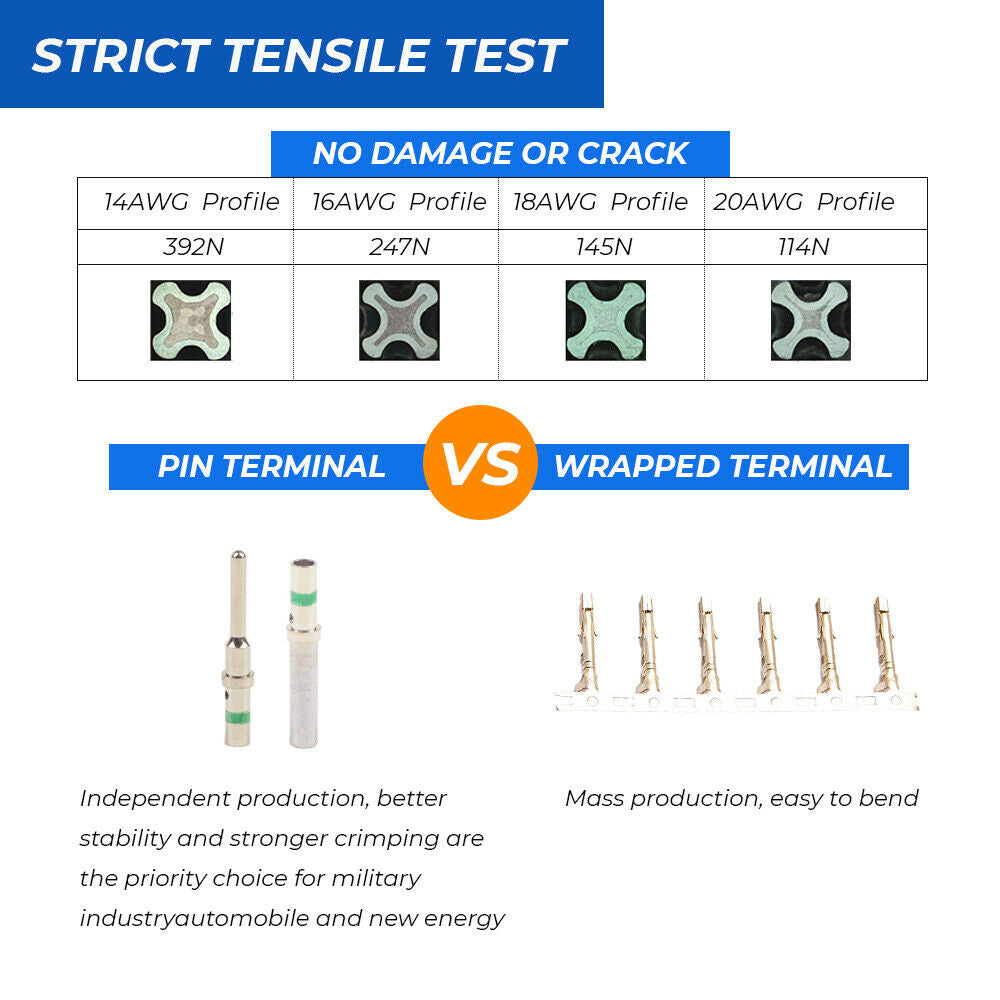

High precision terminals: Connector terminals use high-precision phos-copper plating process to improve conductivity, easy to install under soldering and crimping.

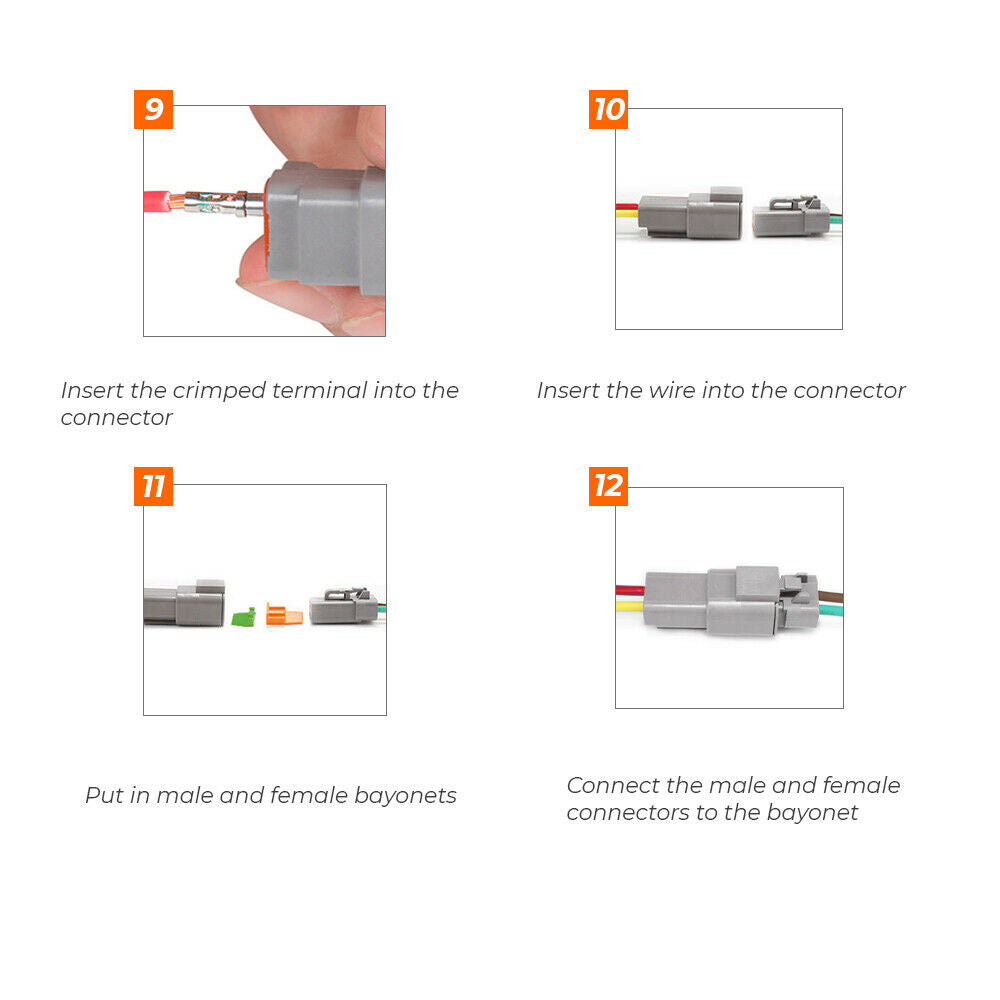

Easy To Install: Buckle design ensures accurate and complete insertion of the contact in the housing and prevents it from slipping out of the connector. It can also be easily removed when needed.

DT Series Connectors: Our DT Series connectors offer reliability and rugged quality, with optional flange mounting, multi-pin arrangements, lower cost, and design flexibility; Waterproof and dustproof will without loss of electronic qualities or leakage after installed.

Wide Application: These waterproof connectors are suitable for various wire connectors of motorcycle, scooter, car, truck, quad bike, caravan, marine, jet ski, boats.

[Product Guarantee]:We offer five years warranty for this item. Any product defects and customer dissatisfaction, you can contact with us on Eaby directly at any time, we will give you the best solution way.

Package including:

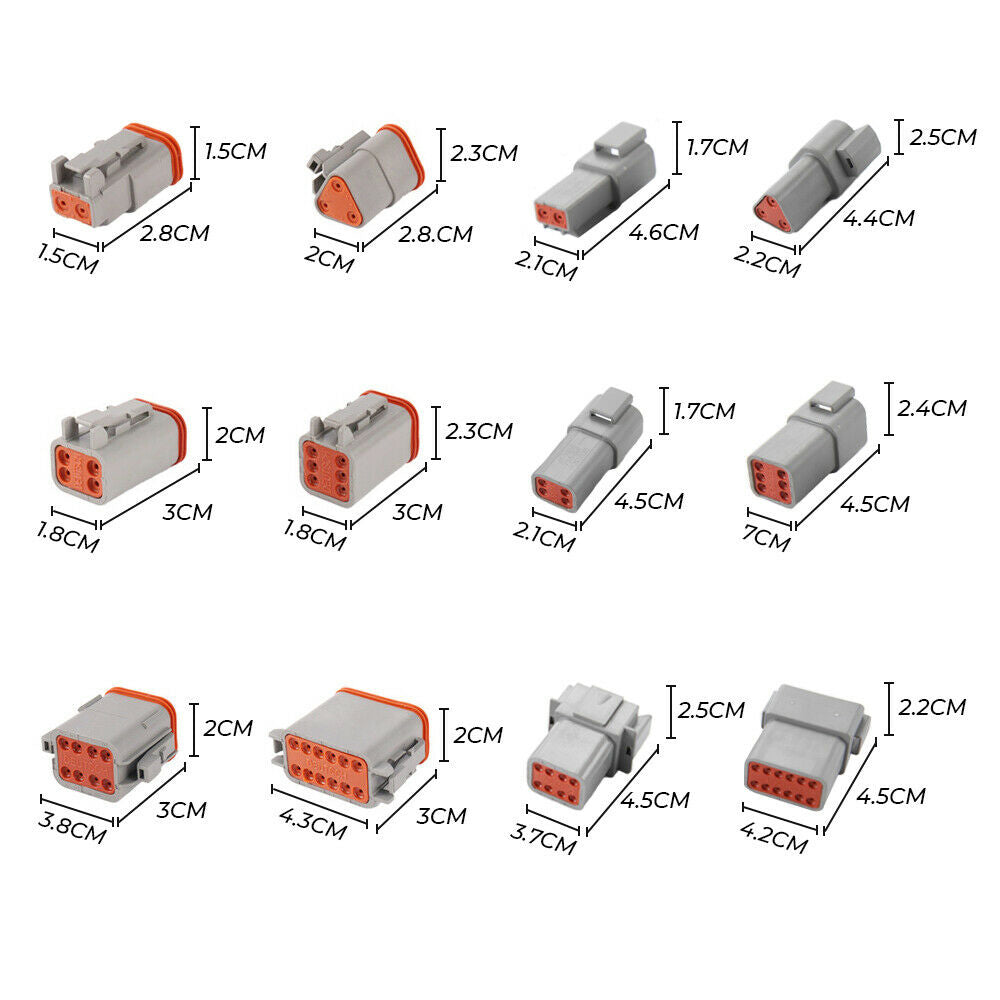

15 x DT04-2P 2-way receptacle with wedgelock

15 x DT06-2S 2-way plug with wedgelock

6 x DT04-3P 3-way receptacle with wedgelock

6 x DT06-3S 3-way plug with wedgelock

6 x DT04-4P4-way receptacle with wedgelock

6 x DT06-4S 4-way plug with wedgelock

4 x DT04-6P 6-way receptacle with wedgelock

4 x DT06-6S 6-way plug with wedgelock

2 x DT04-8P 8-way receptacle with wedgelock

2 x DT06-8S 8-way plug with wedgelock

1 x DT04-12P 12-way receptacle with wedgelock

1 x DT06-12S 12-way plug with wedgelock

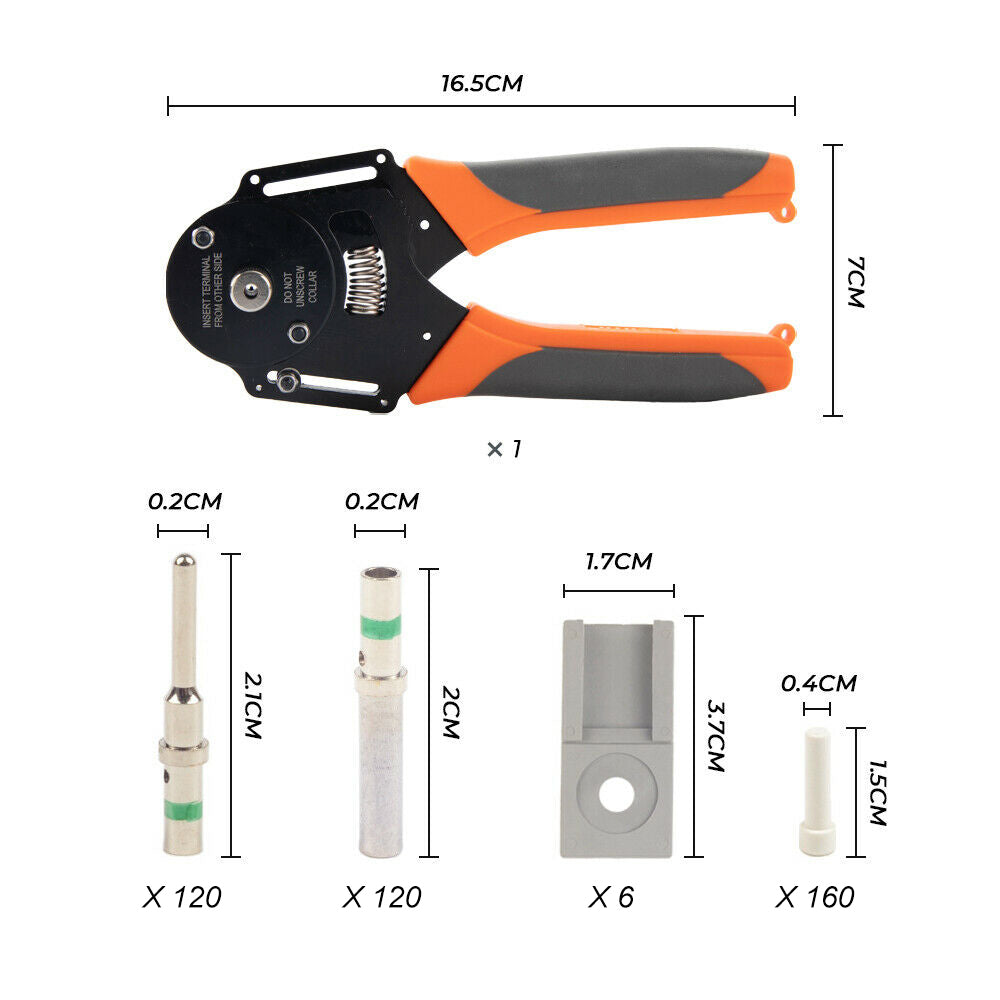

200 x 0460-215-16141 #16 Green band pins to suit 2.00mm 2 wire

200 x 0462-209-16141 #16 Green band sockets to suit 2.00mm 2 wire

125 x 114017 White sealing blanks

6 x 1011-026-0205 Mounting brackets (suits all but 8 way)

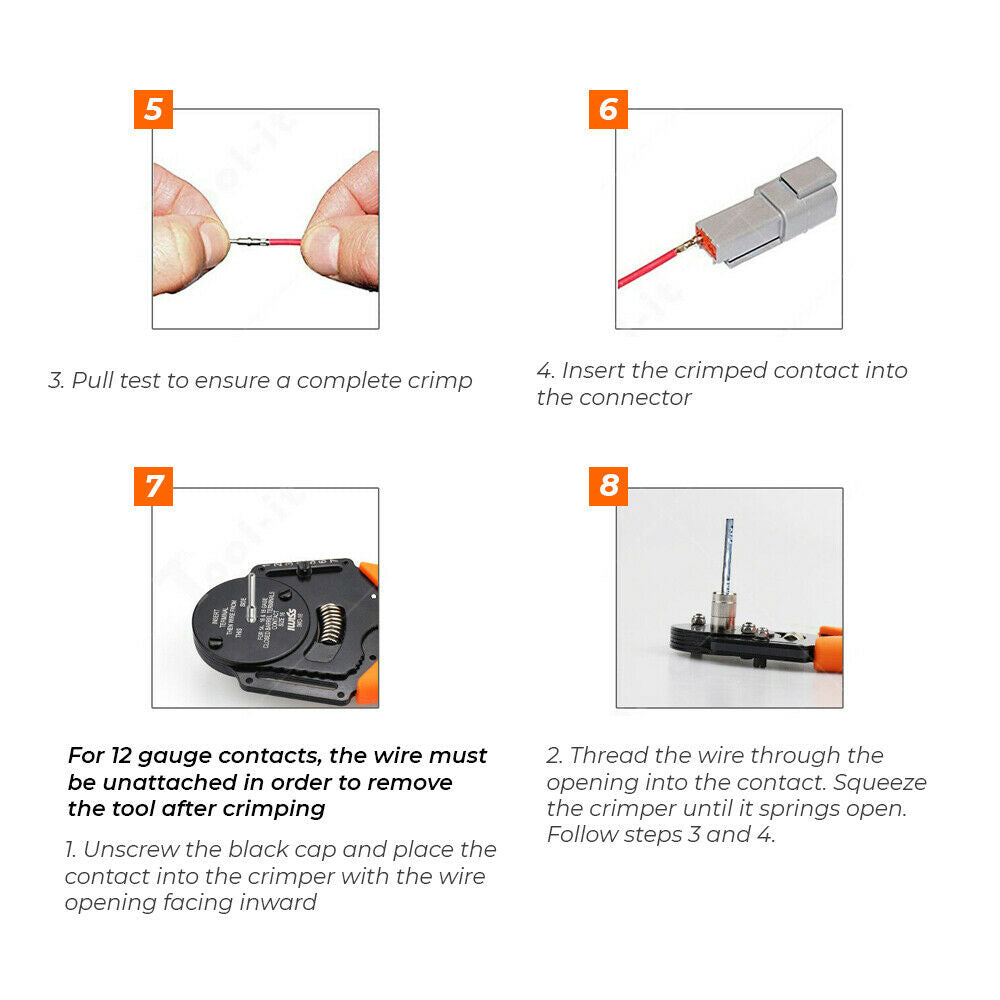

1 x Deutsch crimp tool

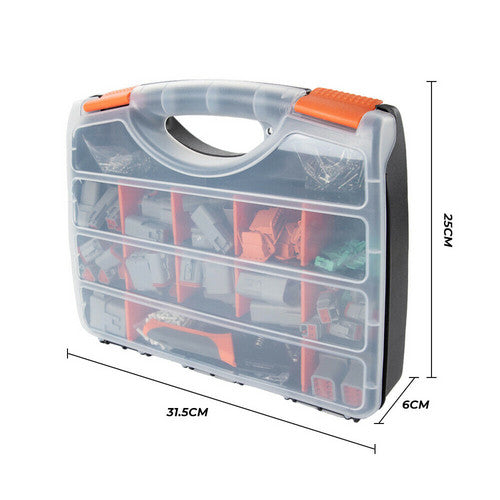

1 x 15 compartment heavy duty case with removable partitions
